![](Picture/hydrant-pressure 1-1.jpg)
|

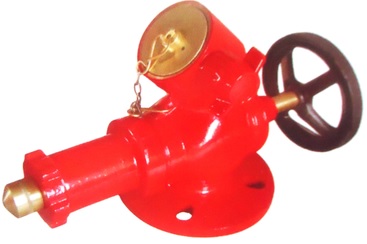

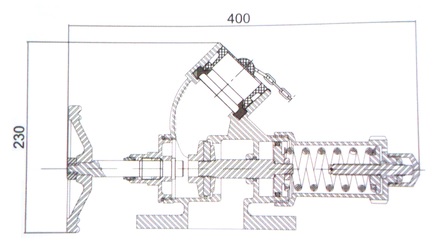

Pressure Regulating Fire Hydrant Valve
Suit for inlet pressure up to 20 bar
Reduced outlet static pressure from 5 bar to 8 bar
Pressure test to 30 bar, Flowrate up to 900L/M
Inlte Flage Connection Std: ANSI, JIS, BS ,DIN Standard
Outlet: Female Instantaneous to BS336 coupling or other connections |
...................................................................................................................................................................... |
![](Picture/hydrant pressure 2-2.jpg)
|

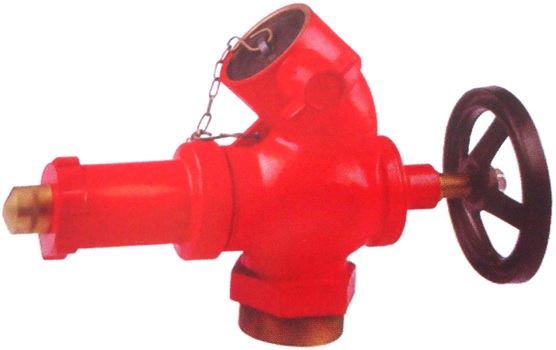

Pressure Regulating Fire Hydrant Valve
Suit for inlet pressure up to 20 bar
Reduced outlet static pressure from 5 bar to 8 bar
Pressure test to 30 bar, Flowrate up to 900L/M
Inlte Flage Connection Std:BSP,BSPT
Outlet: Female Instantaneous to BS336 coupling or other connections
|
..................................................................................................................................................................... |
![](Picture/hydrant pressure 3-2.jpg)
|

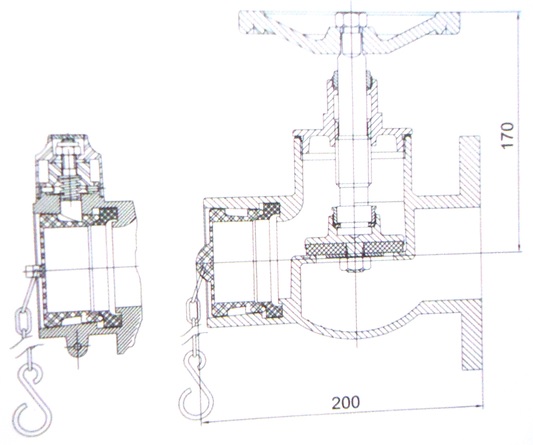

Straight Through Flange Fire Hydrant Valve
Body: Copper Alloy to BS1400, Handwheel: Grey cast iron to BS1452 or aluminum
Pressure test to 23 bar
Inlte Flage Connection Std:BS, ANSI, JIS, DIN
Outlet: Female Instantaneous to BS336 coupling or other connections |
..................................................................................................................................................................... |
![](Picture/hydrant pressure 4-2.jpg)
|
Straight Through Flange Fire Hydrant Valve
Body: Copper Alloy to BS1400, Handwheel: Grey cast iron to BS1452 or aluminum
Pressure test to 23 bar
Inlte Flage Connection Std:BSP,BSPT.
Outlet: Female Instantaneous to BS336 coupling or other connections |
